🚀 Getting Started — Airflow Copilot

This guide walks you through launching Airflow Copilot using Docker Compose files.

Note: This Quick Start guide covers local deployment only. For production or cloud-based deployments, refer to the Deployment section.

🧰 Prerequisites

Make sure you have the following ready:

Docker – Install from Docker Docs
Apache Airflow – Version > 2.5.0 Use the official Docker Compose setup
PostgreSQL – Shared between Airflow and Copilot
Ngrok Authtoken – For public URL tunneling (local bot testing)
Azure Bot Credentials – follow Create an Azure Bot to obtain
- Microsoft App ID & Password
- Azure Service Principal (Client ID & Secret) - Usually same as above.
- Azure Resource Group
- Azure Tenant ID
- Azure Bot Name
Fernet Key (32‑byte secret): create using below script (if not)

python -c "from cryptography.fernet import Fernet; print(Fernet.generate_key().decode())"

LLM Provider & API Keys
Supported: OpenAI, Google_GenAI, Anthropic, Groq

To get started free go with Google Gemini, create a free API key and use the gemini-2.5-flash model.

🧪 Design(conceptual)

Below design reflect the local deployment of the Airflow Copilot.

Local Deployment

🛠 Step 1 — Launch Apache Airflow

If Airflow isn’t running:

Follow the guide: Run Airflow via Docker Compose
Ensure Airflow and PostgreSQL are up.

➡️ Airflow UI → http://localhost:8080
🔐 Login → admin / admin

🤖 Step 2 — Deploy Airflow Copilot

Create a .env file using the template below and update all the necessary environment variables required for deployment.

For detailed descriptions of each variable, refer to the Environment Variables section.

.env

# ───────── LLM (pick ONE provider) ─────────
LLM_MODEL_PROVIDER_NAME=OpenAI
LLM_MODEL_NAME=gpt-4o
OPENAI_API_KEY=your-openai-api-key

# Google example:
# LLM_MODEL_PROVIDER_NAME=Google_Genai
# LLM_MODEL_NAME=gemini-2.5-flash
# GOOGLE_GENAI_API_KEY=ai-...

# Anthropic example
# LLM_MODEL_PROVIDER_NAME=Anthropic
# LLM_MODEL_NAME=claude-3-5-sonnet-20240620
# ANTHROPIC_API_KEY=ai-...

# Groq example
# LLM_MODEL_PROVIDER_NAME=Groq
# LLM_MODEL_NAME=groq-1
# GROQ_API_KEY=ai-...

# ───────── Azure Bot / Service Principal ─────────
MICROSOFT_APP_ID=your-bot-id
MICROSOFT_APP_PASSWORD=bot-secret
AZURE_CLIENT_ID=your-client-id
AZURE_BOT_NAME=your-bot-name # e.g., Airflow-Copilot
AZURE_CLIENT_SECRET=your-spn-secret
AZURE_TENANT_ID=your-tenant-id
RESOURCE_GROUP=your-resource-group


# ───────── Airflow REST API ─────────
AIRFLOW_BASE_URL=your-airflow-url # e.g., http://localhost:8080/
AIRFLOW_AUTH_STRATEGY=per_user # default is 'per_user', can also be 'centralized'

# ───────── Postgres connection ─────────
# Pass Airflow Postgres connection string here if you are using same postgres for Airflow and Copilot
# If you are using a different Postgres instance, update the connection string accordingly.
# Example:
# DB_USER=airflow
# DB_PASSWORD=airflow
# DB_HOST=host.docker.internal
# DB_PORT=5432
DB_URI=postgresql://<your-db-user>:<your-db-password>@<your-db-host>:<your-db-port>/<your-db-name>

# ───────── Misc ─────────
FERNET_SECRET_KEY=your-fernet-secret-key # Generate using: python -c "from cryptography.fernet import Fernet; print(Fernet.generate_key().decode())"
MIN_MSG_TO_RETAIN=10 #default is 10
# Minimum number of messages to retain in the conversation history before summarization
MIN_MSG_TO_SUMMARIZE=10 #default is 10
# ───────── Summarization LLM ─────────
SUMMARIZATION_LLM_MODEL_PROVIDER_NAME=OpenAI # or OpenAI, Anthropic, Google_Genai
SUMMARIZATION_LLM_MODEL_NAME=gpt-4o # or gpt-4o, claude-3-5-sonnet


# ───────── Optional ─────────
# If you want to use ngrok for local development, set your ngrok authtoken
NGROK_AUTHTOKEN=your-ngrok-authtoken # Optional, if you want to use ngrok for local development

Create docker-compose.local.yml in same .env folder.

docker-compose.local.yml

docker-compose.local.yml

version: "3.9"

# ──────────────── Common env-file anchor ────────────────
x-env: &envfile
  env_file: .env  # Loaded from .env or .env.local

networks:
  airflow:
    driver: bridge

services:

  ###########################################################################
  # 1) Copilot – FastAPI + LangGraph agent (handles DB init internally)
  ###########################################################################
  copilot:
    image: thedatacarpenter/airflow-copilot:latest
    container_name: copilot
    restart: unless-stopped
    ports:
      - "3978:3978"
    healthcheck:
      test: ["CMD", "curl", "-f", "http://localhost:3978/health"]
      interval: 30s
      timeout: 60s
      retries: 5
    environment:
      USE_DOTENV: false

      # LLM / model
      LLM_MODEL_PROVIDER_NAME: ${LLM_MODEL_PROVIDER_NAME}
      LLM_MODEL_NAME: ${LLM_MODEL_NAME}

      # Provider keys
      OPENAI_API_KEY: ${OPENAI_API_KEY}
      GOOGLE_GENAI_API_KEY: ${GOOGLE_GENAI_API_KEY}
      # GROQ_API_KEY: ${GROQ_API_KEY}
      # ANTHROPIC_API_KEY: ${ANTHROPIC_API_KEY}

      # Summarization thresholds
      MIN_MSG_TO_SUMMARIZE: ${MIN_MSG_TO_SUMMARIZE:-10}
      MIN_MSG_TO_RETAIN: ${MIN_MSG_TO_RETAIN:-10}

      # Airflow connection
      AIRFLOW_AUTH_STRATEGY: ${AIRFLOW_AUTH_STRATEGY:-per_user}
      AIRFLOW_USER_NAME: ${AIRFLOW_USER_NAME:-airflow}
      AIRFLOW_USER_PASSWORD: ${AIRFLOW_USER_PASSWORD:-airflow}
      AIRFLOW_BASE_URL: ${AIRFLOW_BASE_URL}

      # Summarization model
      SUMMARIZATION_LLM_MODEL_PROVIDER_NAME: ${SUMMARIZATION_LLM_MODEL_PROVIDER_NAME}
      SUMMARIZATION_LLM_MODEL_NAME: ${SUMMARIZATION_LLM_MODEL_NAME}

      # Database & Bot
      DB_URI: ${DB_URI}
      MICROSOFT_APP_ID: ${MICROSOFT_APP_ID}
      MICROSOFT_APP_PASSWORD: ${MICROSOFT_APP_PASSWORD}

      # Encryption
      FERNET_SECRET_KEY: ${FERNET_SECRET_KEY}
    volumes:
      - .env:/app/src/.env:ro
    networks: [airflow]

  ###########################################################################
  # 2) Ngrok – expose local FastAPI endpoint
  ###########################################################################
  ngrok:
    image: ngrok/ngrok:latest
    depends_on: [copilot]
    command: http copilot:3978 --log stdout
    environment:
      NGROK_AUTHTOKEN: ${NGROK_AUTHTOKEN}
    ports:
      - "4040:4040"
    networks: [airflow]

  ###########################################################################
  # 3) Bot updater – patches Azure Bot with ngrok URL
  ###########################################################################
  bot-updater:
    image: thedatacarpenter/airflow-copilot:latest
    <<: *envfile
    entrypoint: ["/usr/local/bin/update_bot.sh"]
    depends_on: [ngrok]
    restart: "no"
    environment:
      NGROK_API: http://ngrok:4040/api/tunnels
      BOT_NAME: ${AZURE_BOT_NAME:-Airflow-Copilot}
      RESOURCE_GROUP: ${RESOURCE_GROUP}
      AZURE_CLIENT_ID: ${AZURE_CLIENT_ID}
      AZURE_TENANT_ID: ${AZURE_TENANT_ID}
      AZURE_CLIENT_SECRET: ${AZURE_CLIENT_SECRET}
    volumes:
      - .env:/app/src/.env:ro
    networks: [airflow]

▶️ Run Copilot

# Create Docker network (once)
docker network create airflow

# Start all services
docker compose -f docker-compose.local.yml up -d

🧽 Clean Up

docker compose -f docker-compose.local.yml down -v

What Happens Next 🎉

Copilot launches on http://localhost:3978
Ngrok exposes a public URL and the Azure bot endpoint is patched automatically. Confirm it by login to Azure and check the endpoint corresponding to Airflow-Copilot Bot created.

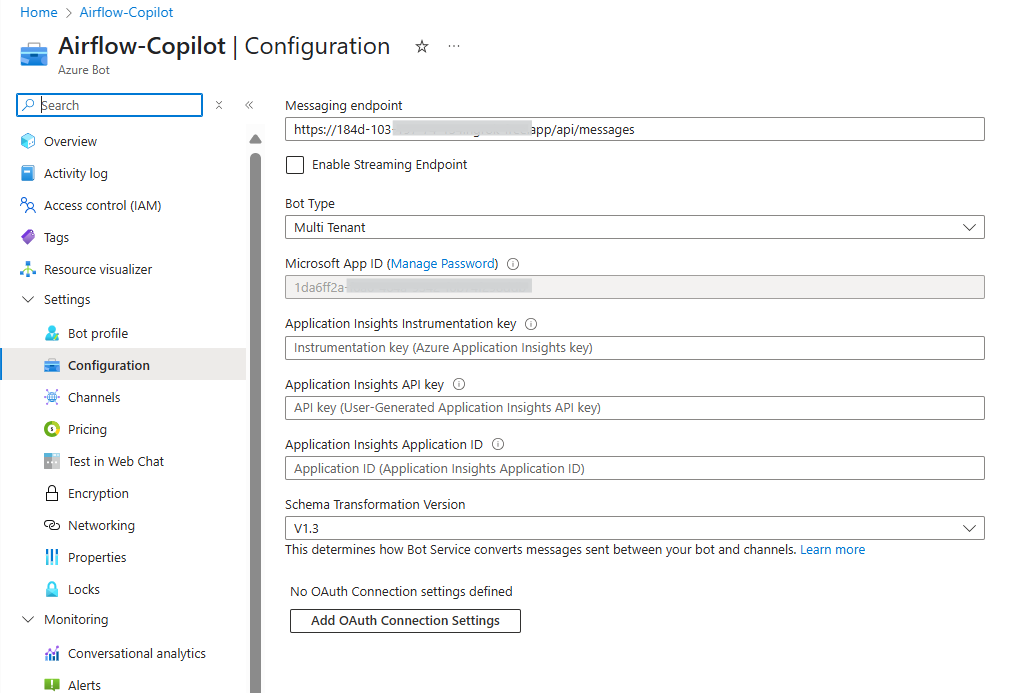

Azure Bot Message Endpoint

Chat with Airflow Copilot directly in Microsoft Teams! Login to Azure Portal and validate the same. Update the Airflow Credential if the deployment is with per_userAIRFLOW_AUTH_STRATEGY

🔗 Next Steps

How to Update the Airflow Credential?
Agent Behavior Notes & Known Limitations: Some know Airflow Copilot behaviour and Limitations.
