👾 Create an Azure Bot (for Microsoft Teams)

Airflow Copilot communicates through a custom Microsoft Teams App hosted on Azure Bot Service. Follow these steps to register the bot, enable Teams, and wire the credentials into Copilot.

🧭 Process at a Glance

Step Action Outcome
1️⃣ Register Bot in Azure Portal Generates Microsoft App ID & Client Secret
2️⃣ Enable Teams Channel Allows Teams users to message the bot
3️⃣ Set Messaging Endpoint Points Azure Bot → https://…/api/messages
4️⃣ Add Credentials to Copilot Copilot verifies every incoming request

🛠️ Step‑by‑Step Guide

1. Register the Bot

  1. Sign in to the Azure Portal (a free‑tier account works fine).
  2. Click ➕ Create a resource → search “Azure Bot” → Create.
  3. Fill in the form and Click Review + Create → Create.
Field Example / Notes
Bot handle Airflow‑Copilot
Subscription Your active subscription
Resource group Create or reuse one
Data residency Global (or preferred region)
Pricing tier F0  Free (dev) or S1 (prod)
Messaging endpoint Leave blank for now

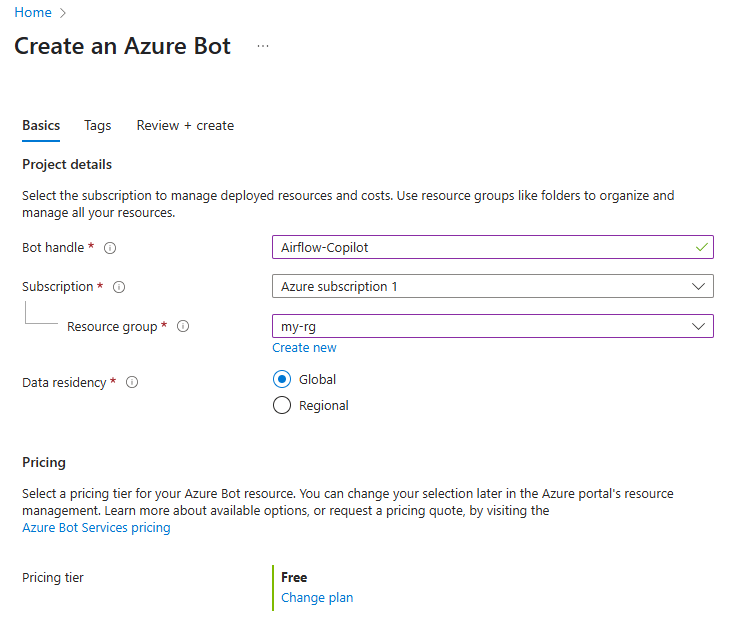

Azure Bot

2. Grab App Credentials

  1. Open the newly‑created Bot Resource.
  2. Go to Settings → Configuration.
  3. Copy the values below (store them securely!):
MICROSOFT_APP_ID= 1da6ff2a-xxx-xxxx-xxxx-xxxxxxxxxxxx
MICROSOFT_APP_PASSWORD= Csc**************************

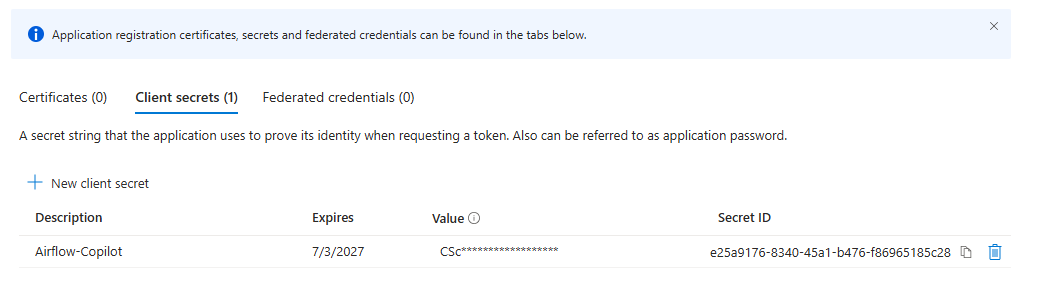

Azure Bot Secret

Note: the client secret is shown only once after creation. Keep it safe.

Azure Bot Secret

3. Enable the Teams Channel

  1. In the left panel, choose Channels.
  2. Click Microsoft Teams → Save.

Your bot is now reachable from Microsoft Teams 🎉

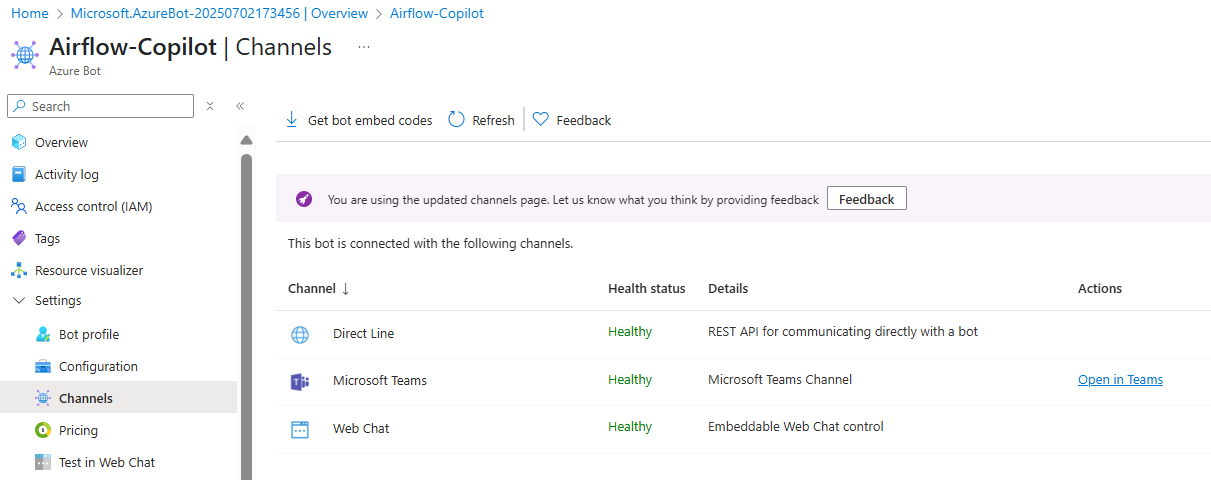

Azure Bot Secret

4. Configure the Messaging Endpoint

Environment What to do Notes
Development / Local Nothing – the Docker Compose stack auto‑patches the endpoint with the current ngrok URL.
Production Paste your stable HTTPS URL (e.g. https://<copilot.your‑domain.com>/api/messages) into Settings → Configuration → Messaging endpoint and click Save. Do this once after deployment or DNS cut‑over.

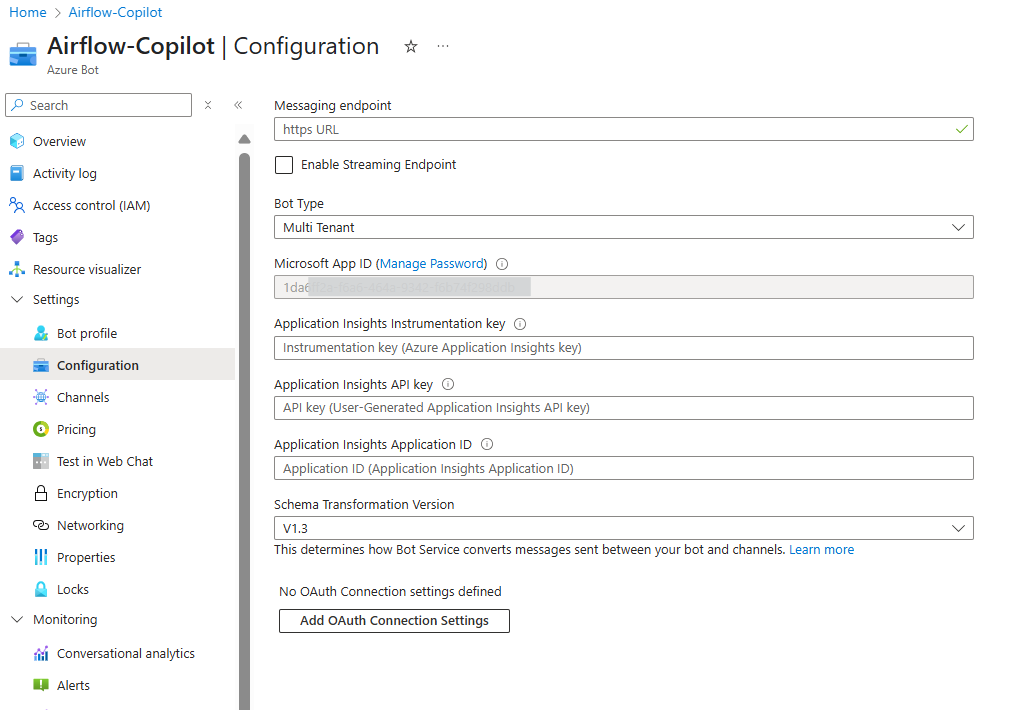

Azure Bot Message Endpoint

🔐 Optional: Required Only for Local Deployment

When deploying Airflow Copilot locally, the bot’s Messaging Endpoint (NGROK URL) get update during deployment script. This update requires authentication to Azure using a Service Principal (SPN).

If you already have a separate service principal with Contributor access to the Azure Bot resource group, you can skip this step and use same in AZURE_CLIENT_ID and AZURE_CLIENT_SECRET in docker-compose.yml file. Otherwise, follow the instructions below to create one for the existing Azure Bot.

🧭 Steps to Create a Service Principal

  1. Navigate to Microsoft Entra ID in the Azure portal.

  2. In the left panel, select App registrations, then switch to the All applications tab.

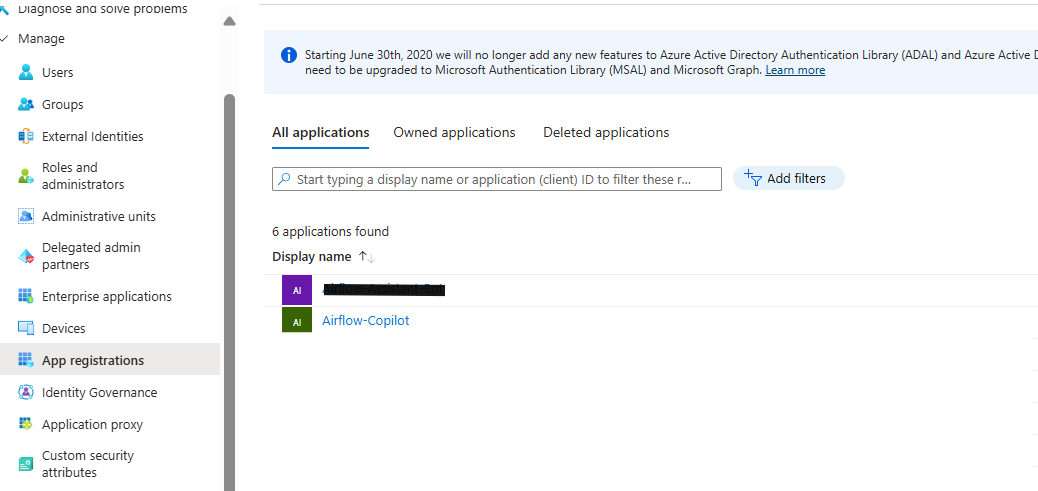

    App Registrations 1

  3. Select your Azure Bot app from the list, then click on Create service principal.

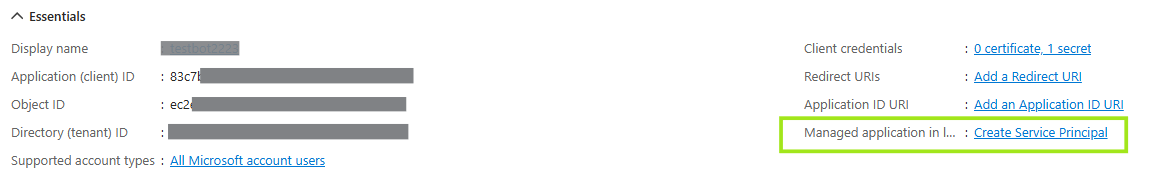

    App Registrations 2

  4. After creating the SPN, go to Subscriptions and open the subscription associated with your Azure Bot.

  5. Click on Access control (IAM) → ➕ Add → Add role assignment.
  6. Choose Contributor from the list of roles under Privileged administrator roles.
  7. In the Members step, choose User, group, or service principal, then click ➕ Select members.
  8. Search for and select your Bot’s app registration name.
  9. Click Review + assign to complete the setup.

Once completed, you can use MICROSOFT_APP_ID as AZURE_CLIENT_ID and MICROSOFT_APP_PASSWORD as AZURE_CLIENT_SECRET, and AZURE_TENANT_ID in your deployment environment.

✅ Recap

Azure output Copilot variable Purpose
App ID MICROSOFT_APP_ID Bot identity verification
Client Secret MICROSOFT_APP_PASSWORD JWT signing for incoming messages
Teams channel ✔️ — Enables chat from Teams to Copilot

🔐 Security Best Practices

  • Never hard‑code secrets – inject them via environment variables, Docker Secrets, or a secrets manager.
  • Rotate the Client Secret regularly (e.g. every 90 days).
  • Apply least‑privilege RBAC to the bot’s resource group.
